Adult Pelvis with Organs for X-Ray CT, US
Product Description

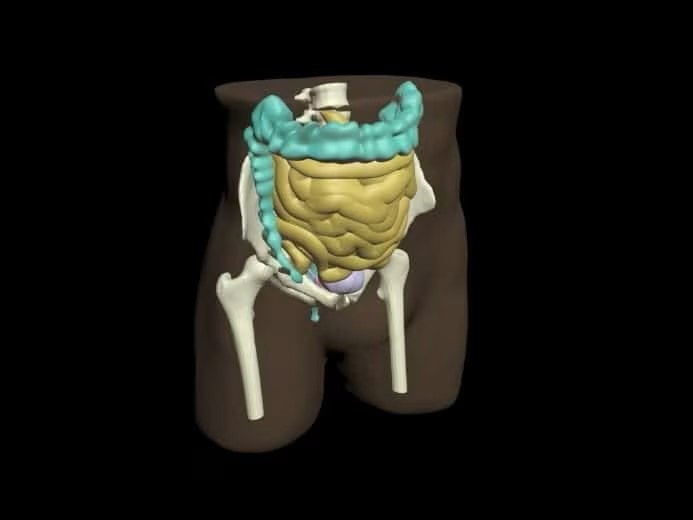

The Adult Pelvis with Organs Phantom is designed based on the anatomy of an average adult human male. This phantom serves as a high-fidelity tool for medical imaging research, radiology training, and calibration purposes, specifically optimized for X-Ray/CT and Ultrasound applications. It features realistic synthetic bones and soft tissue-mimicking materials that accurately reflect the acoustical and physical properties of living tissue.
The model includes the essential bony structures of the pelvic region and a suite of realistic internal organs. The spine bones feature a realistic three-layered structure with adjustable inner porosity. This phantom is fully customizable, allowing for modifications in size, shape, and internal features based on specific project requirements or individual CT scan data.

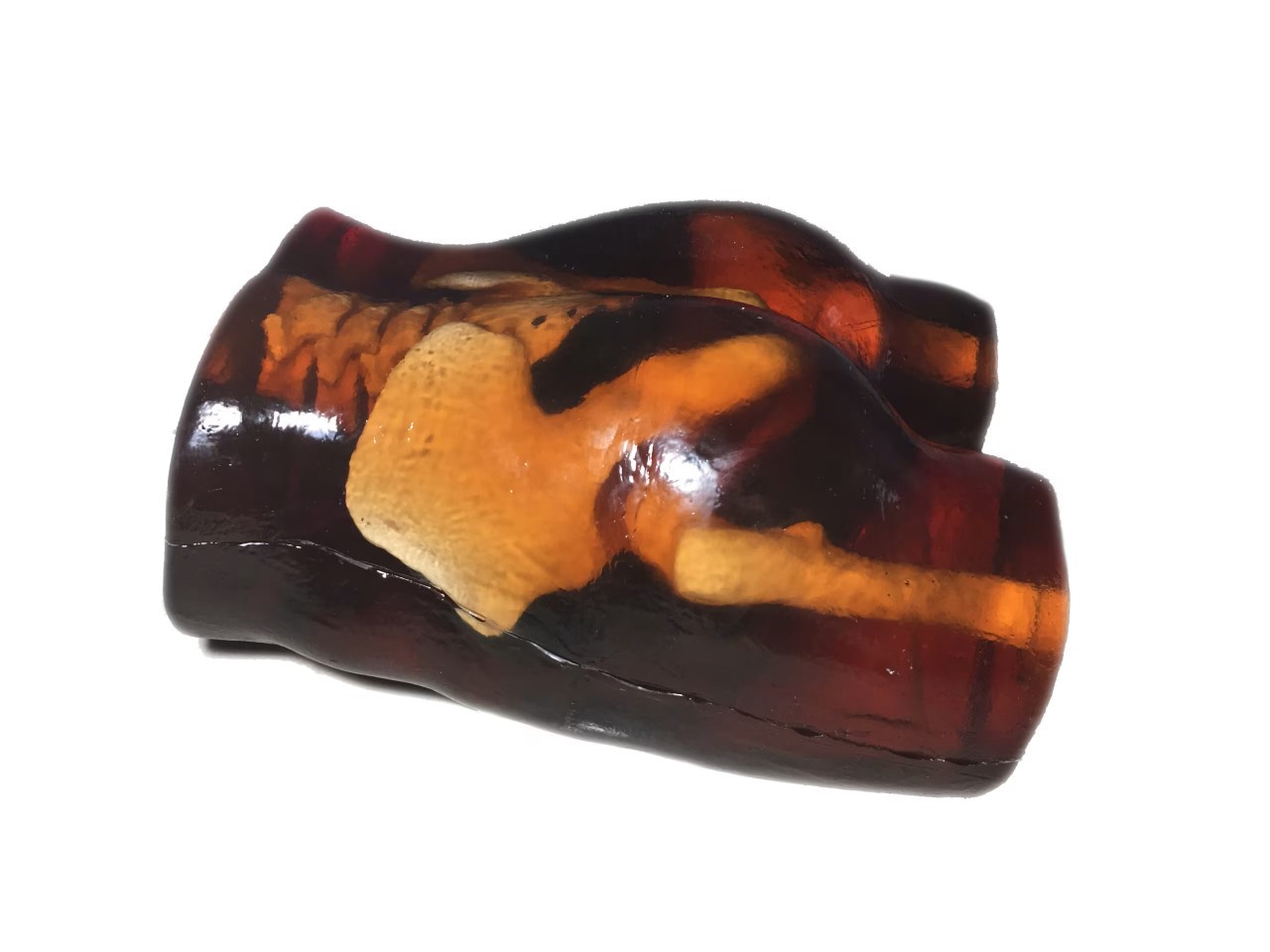

Note: By default, the phantom comes in a translucent amber appearance. A skin feature and custom fat layers (e.g., increasing BMI to 33) can be added upon request. While technically compatible with MRI (T2: 50ms), it is primarily categorized for X-Ray/CT and US.
Anatomy
- Spine (L5 to L2)
- Pelvis Bone
- Partial Left and Right Femoral Bones
- Large Intestine
- Rectum
- Prostate
- Bladder (with simulated internal fluid)
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation (2.25 MHz) [dB/cm] |
|---|---|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Soft Tissue | 1410 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
Thermal Properties of Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |
HU Values of Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (Average) |
|---|---|---|
| 1 | Soft Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| 4 | Bladder | 35 |
| 5 | Rectum Wall | 100 |
| 6 | Sigmoid Colon Wall | 100 |
Included in Order
- Adult Pelvis with Organs Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight

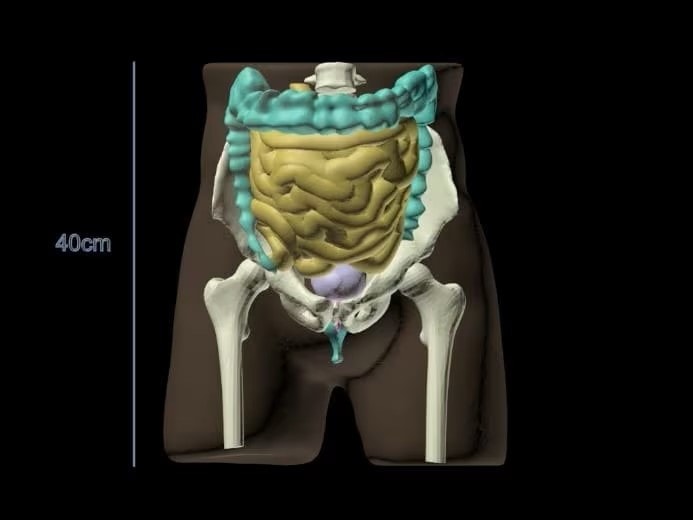

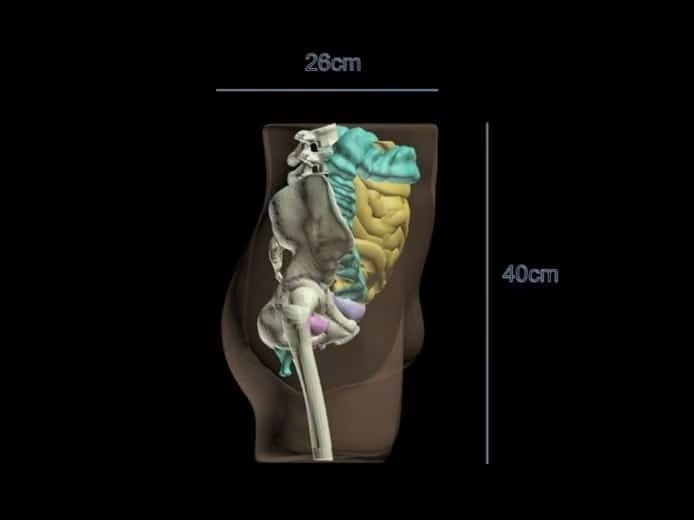

Phantom: 14 x 10 x 16 Inches | Weight: ~49 Lbs
Shipment: 32 x 23 x 13 Inches | Weight: ~88 Lbs
Materials Used
- Soft tissue and organs: Composition of urethane-based soft resin.
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material.
Imaging Scans

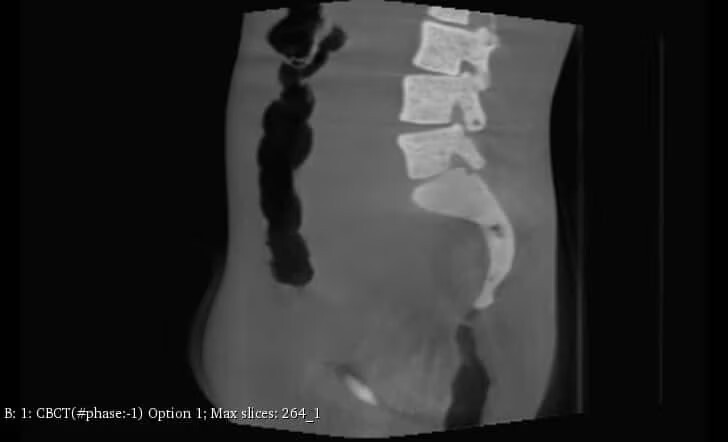

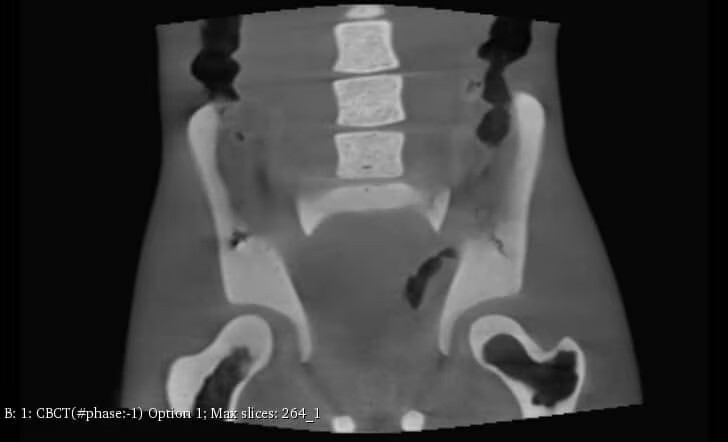

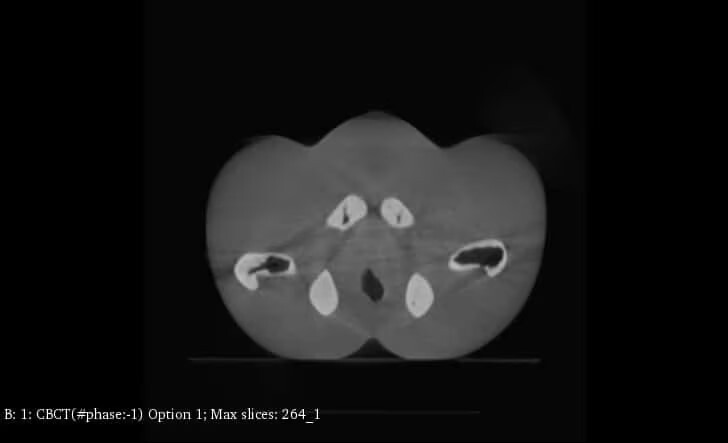

CT Image Scans

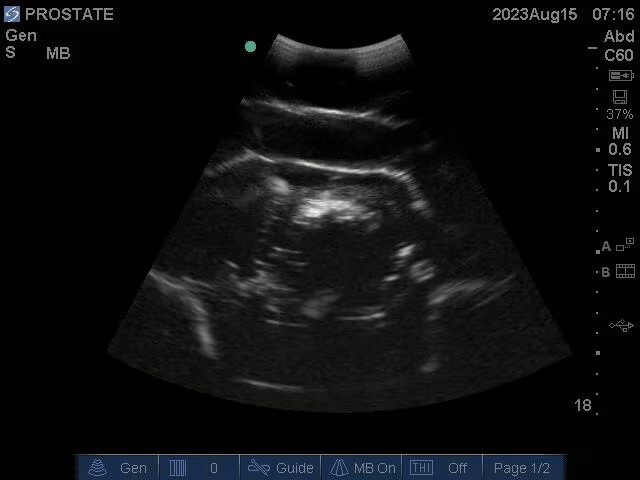

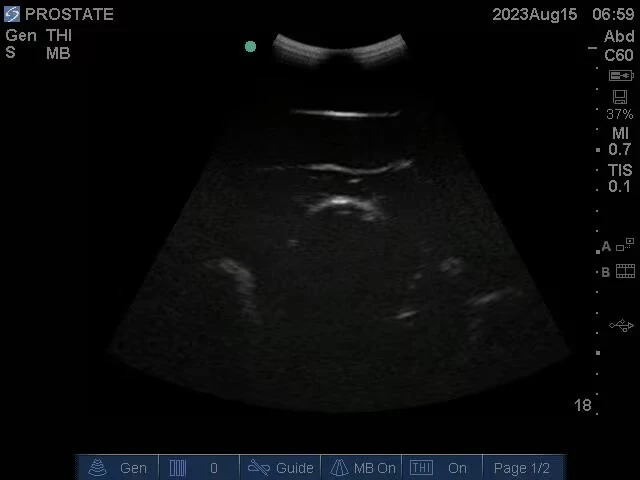

Ultrasound Image Scans
Warranty Information
2-Years Limited Warranty Against Manufacturer Defects
