Description
Standard Calvaria for X-Ray CT, US, MRI
Product Description
The Standard Calvaria phantom is an essential tool for medical imaging research and treatment planning for non-invasive HIFU brain surgeries. Its design is based on an average human male skull, utilizing a patented ceramic-reinforced epoxy-based composite material suitable for Ultrasound, MRI, and X-Ray/CT applications.
The phantom features a realistic three-layered structure, and the inner porosity can be adjusted to meet specific project requirements. While the standard model represents the calvaria, other parts of the skull can be fabricated upon request.
Anatomy
- Calvaria (Skullcap)
- Cortical Bone
- Trabecular Bone
Technical Properties
| Type of Tissues | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation (2.25 MHz) [dB/cm] |
|---|---|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
Included in Order
- Standard Calvaria Phantom
- User manual/assembly instructions
- 2-year warranty and unlimited customer service
Size & Weight

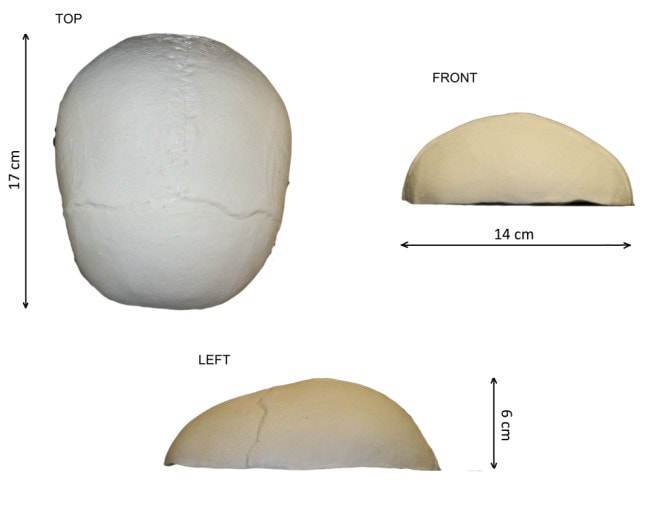

Phantom: 6.7 x 5.5 x 2.4 Inches | Weight: ~2 Lbs
Shipment: 12 x 10 x 10 Inches | Weight: ~6 Lbs
Materials Used
- Soft tissue components (if applicable): Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Customization
Customization is offered for almost any phantom. We can adjust inner porosity or fabricate other parts of the skull based on customer requirements.
Warranty Information
2-Years Limited Warranty Against Manufacturer Defects
True Phantom Solutions Inc. (TPS) Products Limited Warranty
The TPS products are guaranteed to be free from defects in material and workmanship, under normal use, for a period of two years after date of shipment. This warranty covers the repair or replacement of a product when is sent prepaid to TPS. TPS does not assume liability for installation, abuse, alteration, insufficient application data provided for a design or misuse. We are responsible for the condition of our product. We would love to help you resolve any issues. Please let us know if you have received any defective items by contacting us here: [email protected]
Who qualifies?
TPS customers who buy directly from True Phantom Solutions Inc.. Products purchased from other third-party sellers are NOT eligible for TPS limited warranty. Purchased from other channels may offer different or altered warranties.
What qualifies?
Valid only for items with manufacturer defects, flaws produced by a manufacturer error, or defects caused during production. Products must be in their original storage case (if provided) or one with comparable protection.
Returns/Replacements
Any product requiring a return/replacement (for warranty or non-warranty repair) requires pre-approval from Anatomy Warehouse prior to shipment. Contact Anatomy Warehouse customer service department at 800-422-1134 or [email protected] in order to obtain a RPA (Return/Replacement Product Authorization) number. The RPA number should be clearly marked on the returned package label and your packing list, or shipping document. Return product freight prepaid in its original storage case (if provided) or one with comparable protection. True Phantom Solutions will not accept return shipments sent freight collect. Product damage incurred during return shipment, from poor packing, will not be warranted by True Phantom Solutions.
