Adult Spine for X-Ray CT
Product Description

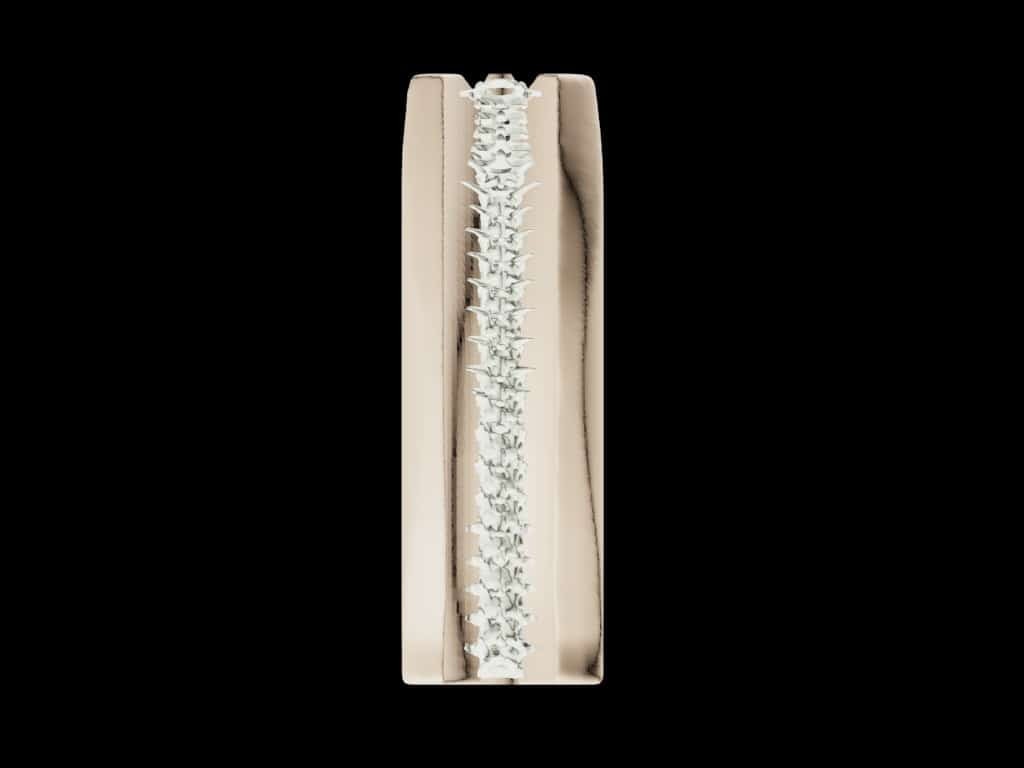

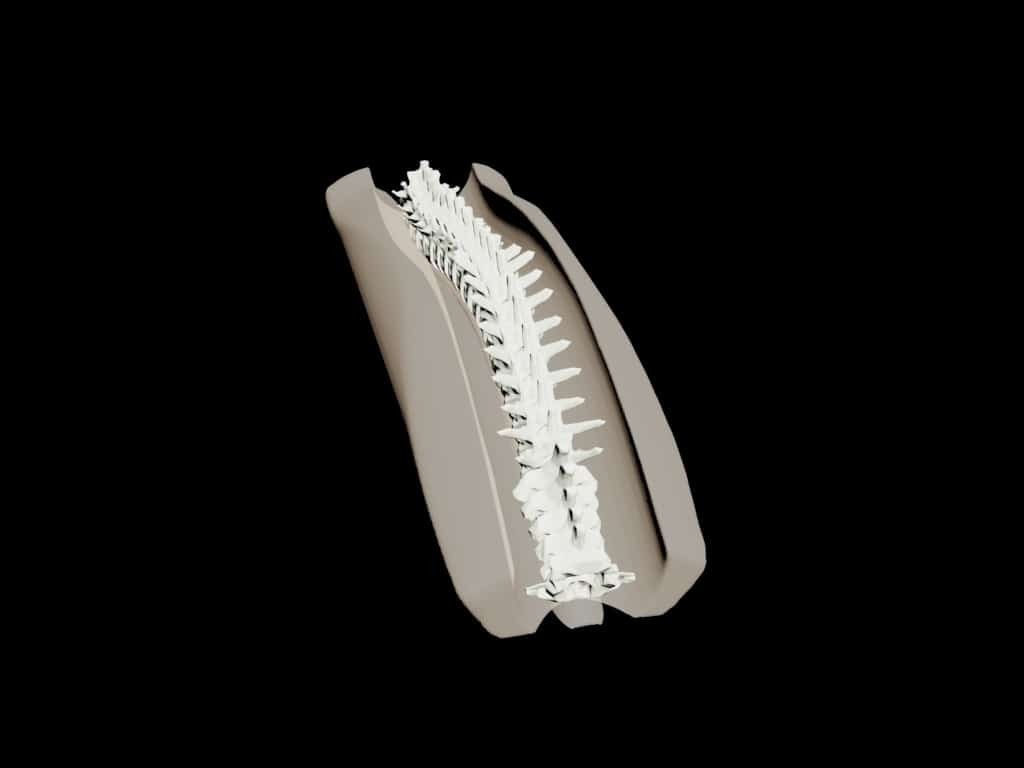

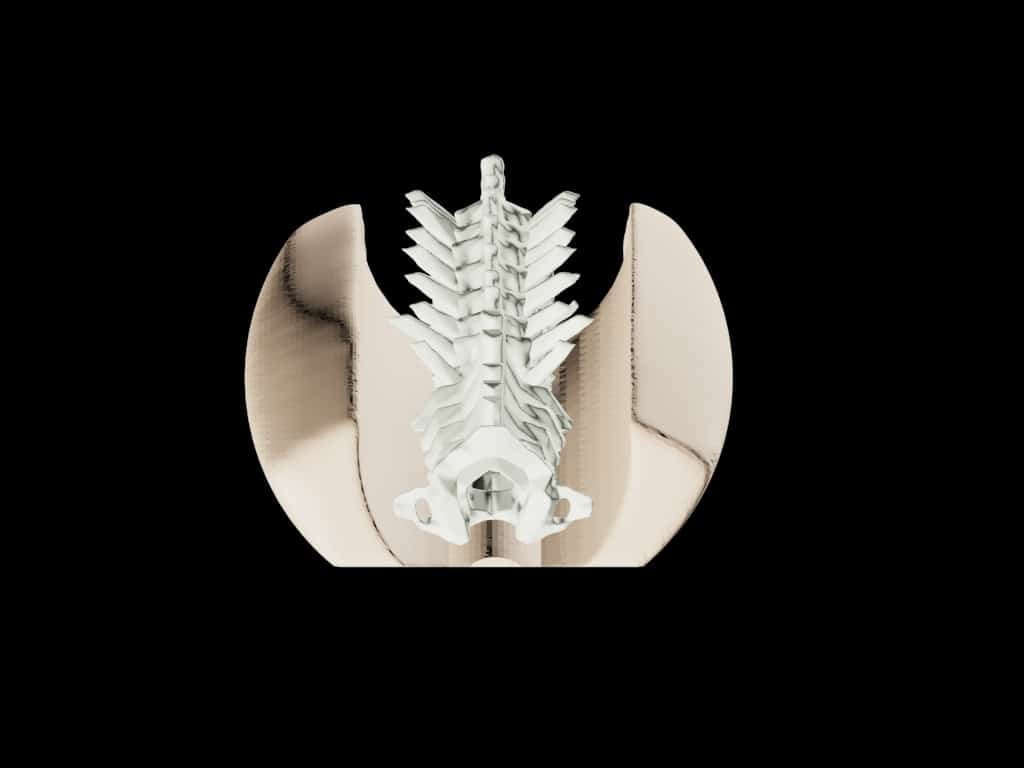

The Adult Spine Phantom is a high-fidelity anatomical model designed specifically for X-Ray and CT imaging applications. It consists of 24 to 25 individual vertebrae (C1 through L5) assembled in sequence to mimic a complete human spinal column. The vertebrae are embedded in a semi-cylindrical body-mimicking tissue that provides a realistic scanning medium.
Constructed using patented bone-mimicking material, the synthetic vertebrae feature a realistic three-layered structure (cortical bone, trabecular bone, and diploe). The inner porosity of the bones can be adjusted to meet specific project requirements. This phantom is an essential tool for medical imaging research, radiology training, and treatment planning for spinal procedures.
Note: By default, the phantom represents an average adult human male. Customization of the spine's curvature, bone density, or external dimensions is available upon request.
Anatomy
- Cervical Vertebrae (C1 C7)
- Thoracic Vertebrae (T1 T12)
- Lumbar Vertebrae (L1 L5)
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hounsfield Value | Attenuation (2.25 MHz) [dB/cm] |
|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | 1300 | 21 ± 2 |
Thermal Properties of Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |
HU Values of Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
Included in Order
- Adult Spine Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 22 x 7 x 7 Inches | Weight: ~30 Lbs
Shipment: 32 x 23 x 13 Inches | Weight: ~55 Lbs
Materials Used
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material.
- Body mimicking tissue: Urethane-based soft resin.
Imaging Scans

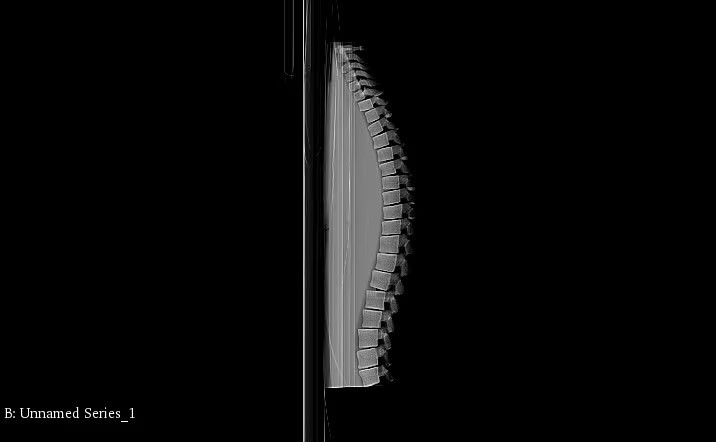

X-Ray Image Scans

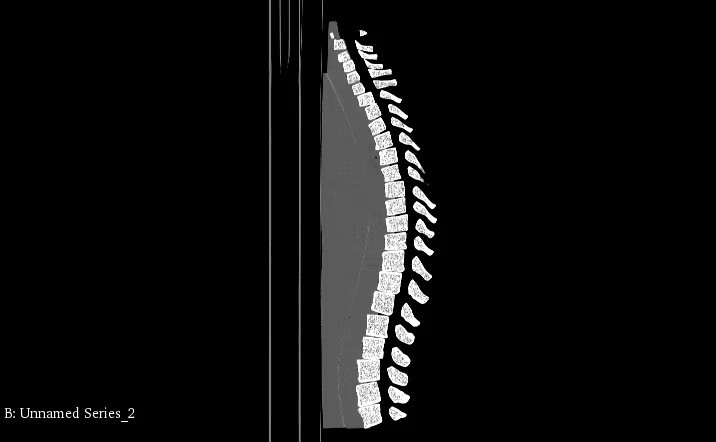

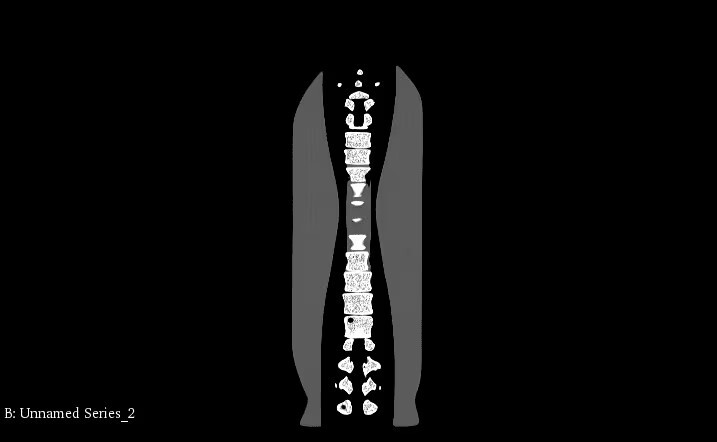

CT Image Scans
Warranty Information
2-Years Limited Warranty Against Manufacturer Defects
True Phantom Solutions Inc. (TPS) Products Limited Warranty
The TPS products are guaranteed to be free from defects in material and workmanship, under normal use, for a period of two years after date of shipment. This warranty covers the repair or replacement of a product when is sent prepaid to TPS. TPS does not assume liability for installation, abuse, alteration, insufficient application data provided for a design or misuse. We are responsible for the condition of our product. We would love to help you resolve any issues. Please let us know if you have received any defective items by contacting us here: [email protected]
Who qualifies?
TPS customers who buy directly from True Phantom Solutions Inc.. Products purchased from other third-party sellers are NOT eligible for TPS limited warranty. Purchased from other channels may offer different or altered warranties.
What qualifies?
Valid only for items with manufacturer defects, flaws produced by a manufacturer error, or defects caused during production. Products must be in their original storage case (if provided) or one with comparable protection.
Returns/Replacements
Any product requiring a return/replacement (for warranty or non-warranty repair) requires pre-approval from Anatomy Warehouse prior to shipment. Contact Anatomy Warehouse customer service department at 800-422-1134 or [email protected] in order to obtain a RPA (Return/Replacement Product Authorization) number. The RPA number should be clearly marked on the returned package label and your packing list, or shipping document. Return product freight prepaid in its original storage case (if provided) or one with comparable protection. True Phantom Solutions will not accept return shipments sent freight collect. Product damage incurred during return shipment, from poor packing, will not be warranted by True Phantom Solutions.
