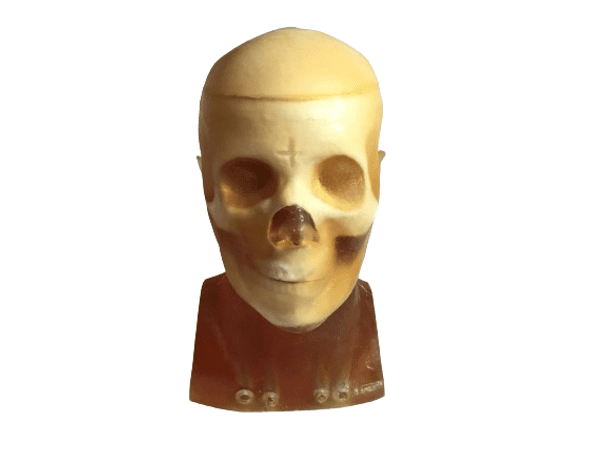

The Adult Head (Openable) phantom for Ultrasound, MRI, and X-Ray/CT was first fabricated based on the unique requirements of IIT Madras in the year 2017. Then later, we improved the accessibility and functionalities of this product with our technology and experience. Different brains can be inserted in and out to serve the purpose of many different research projects. The phantom is suitable for medical imaging applications (both static and dynamic), nuclear medicine, and other CT applications. It can also be customized for training medical students and practitioners. We hold the strength and technology to customize them to meet your needs. If you are a research student or a scientist with medical imaging project. This is your optimal choice.

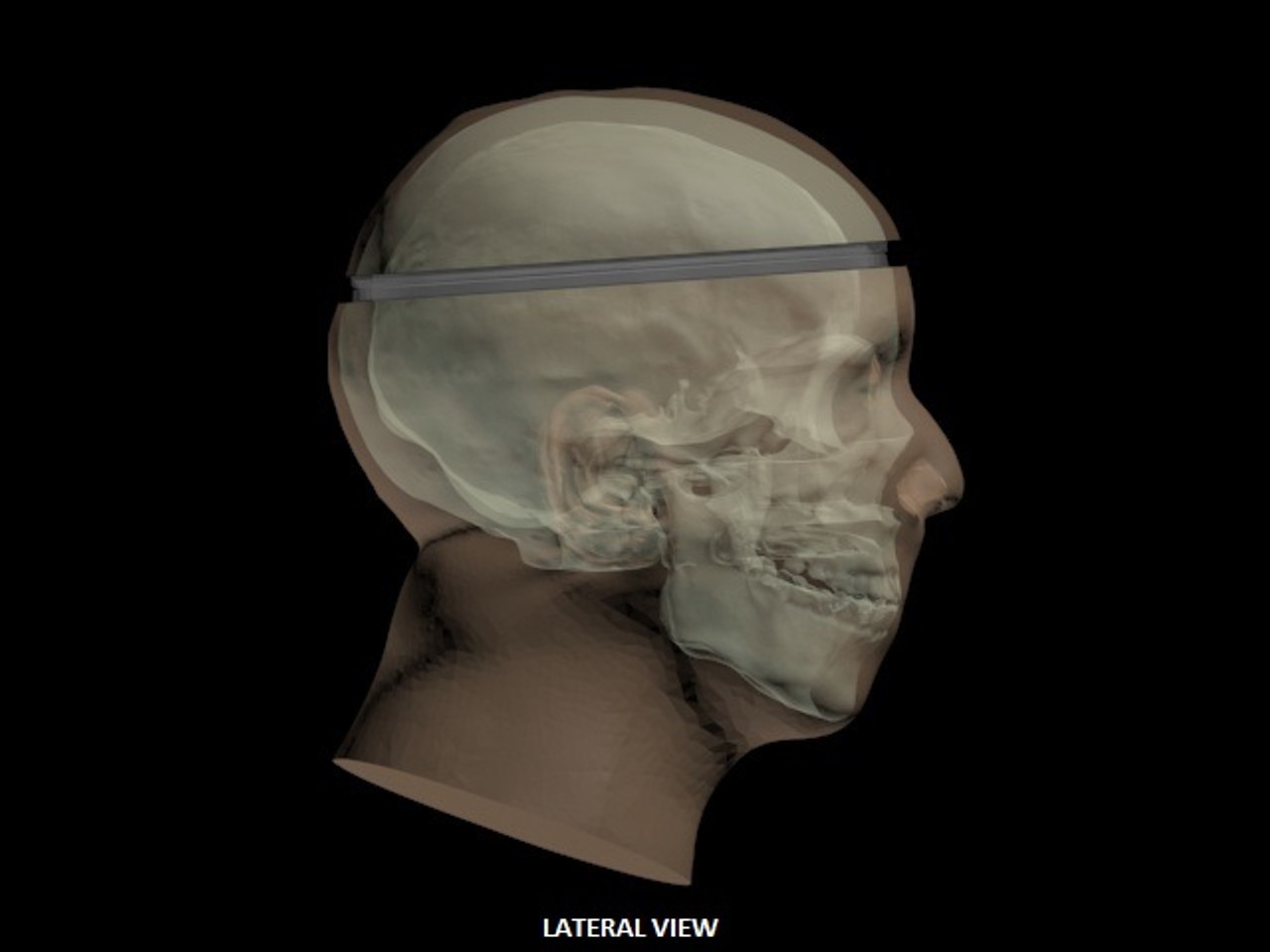

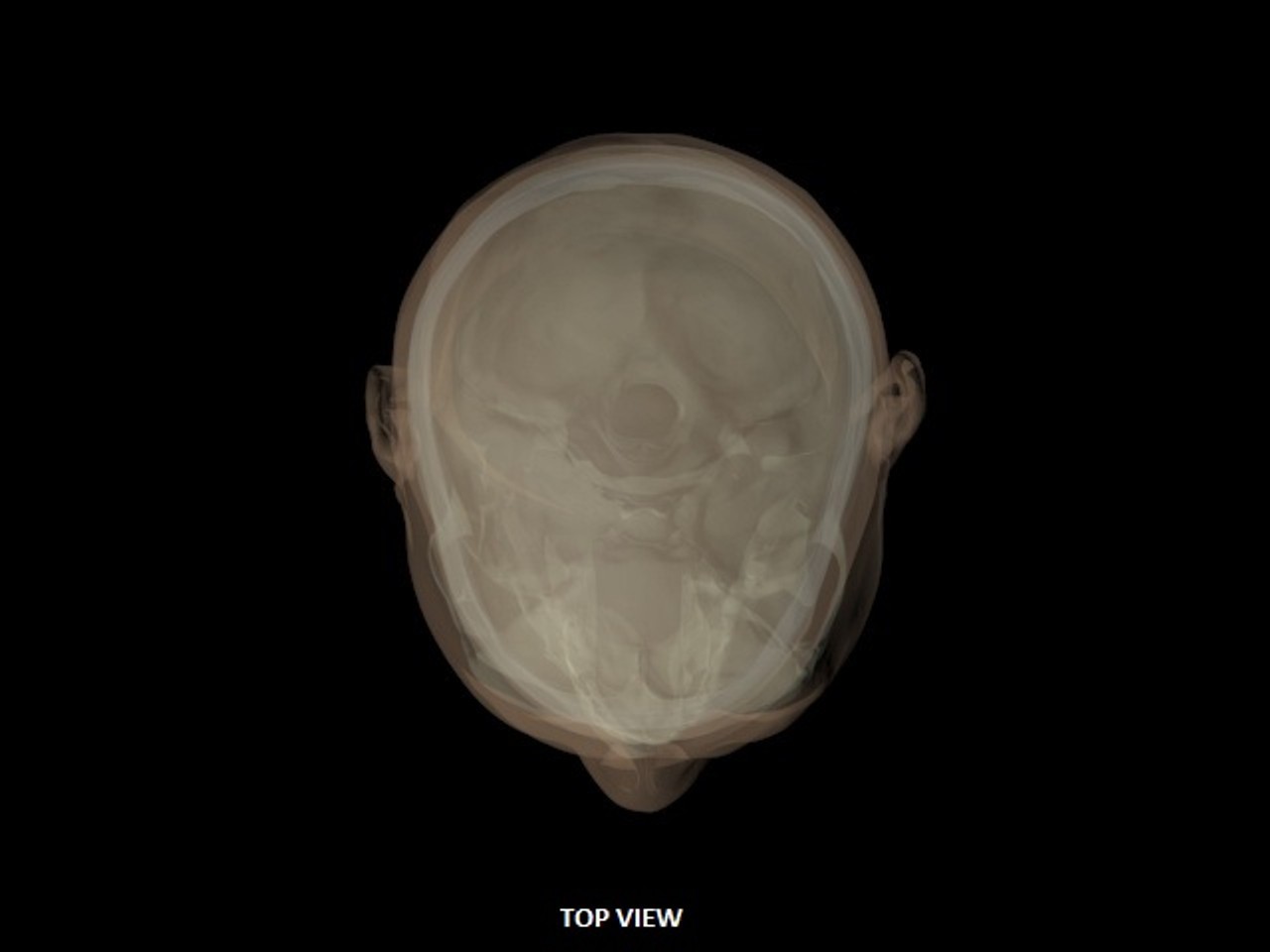

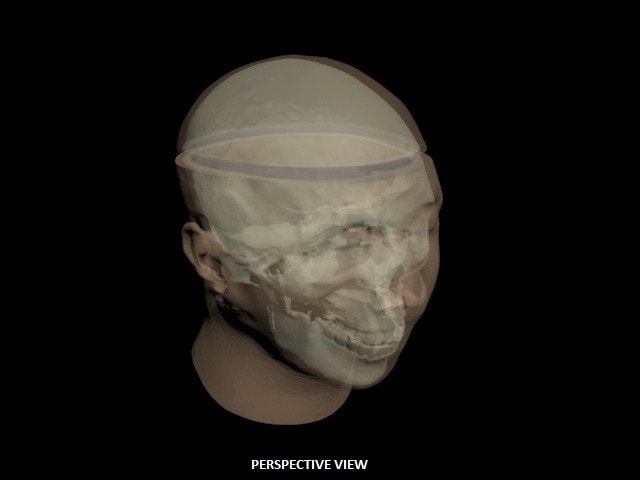

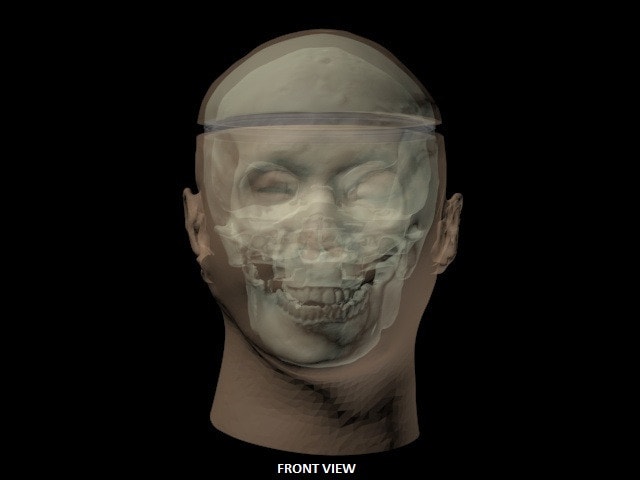

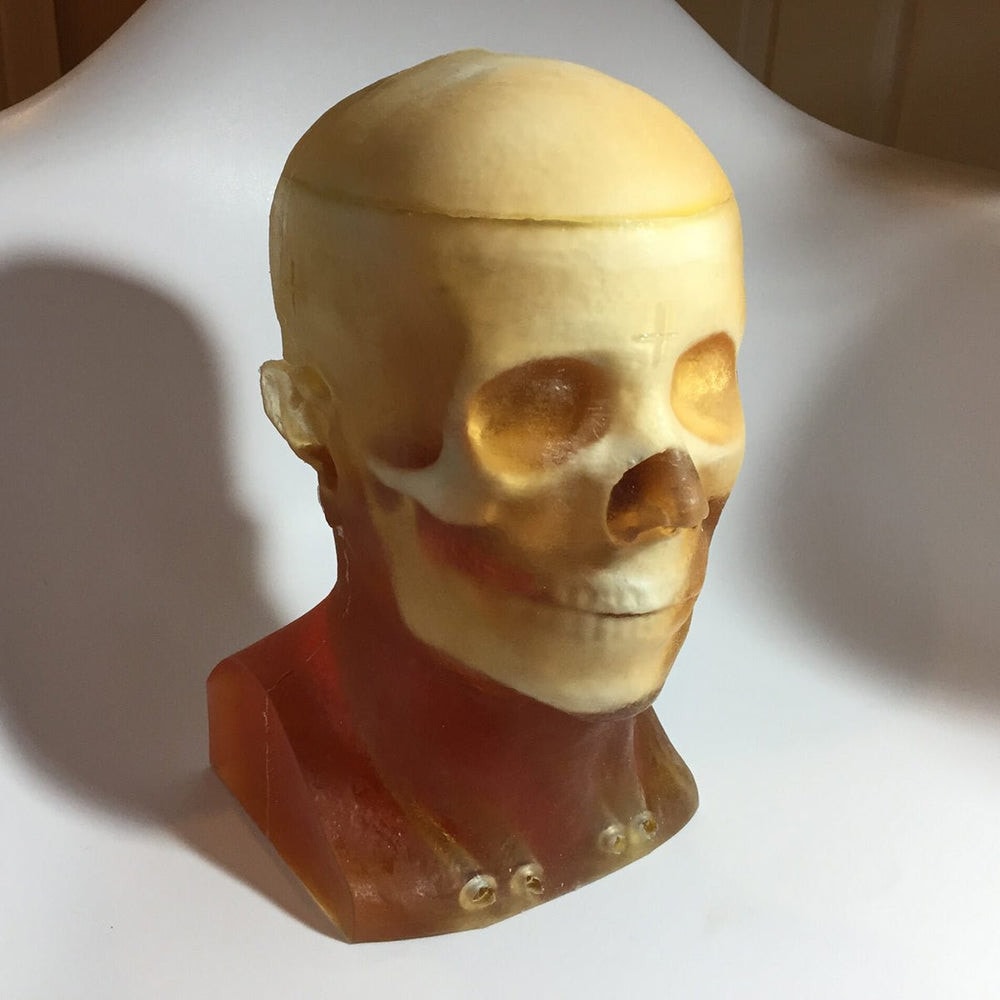

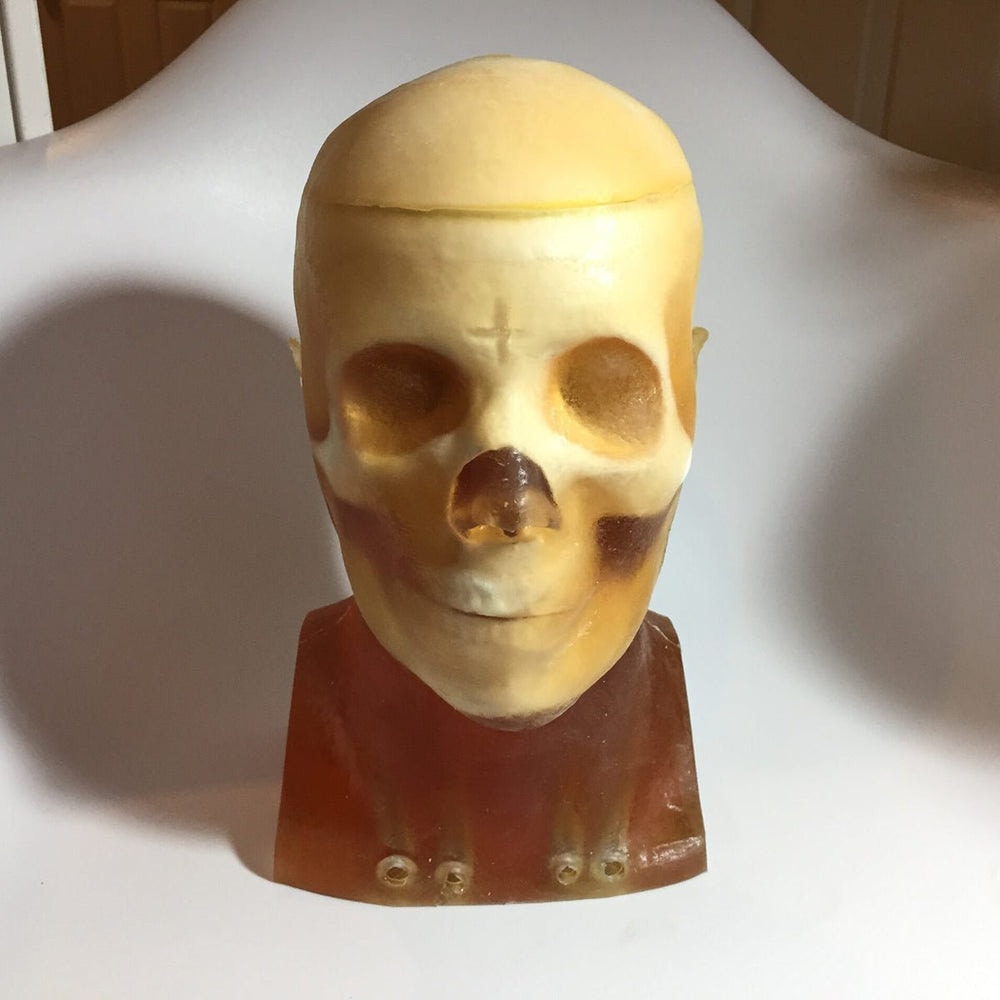

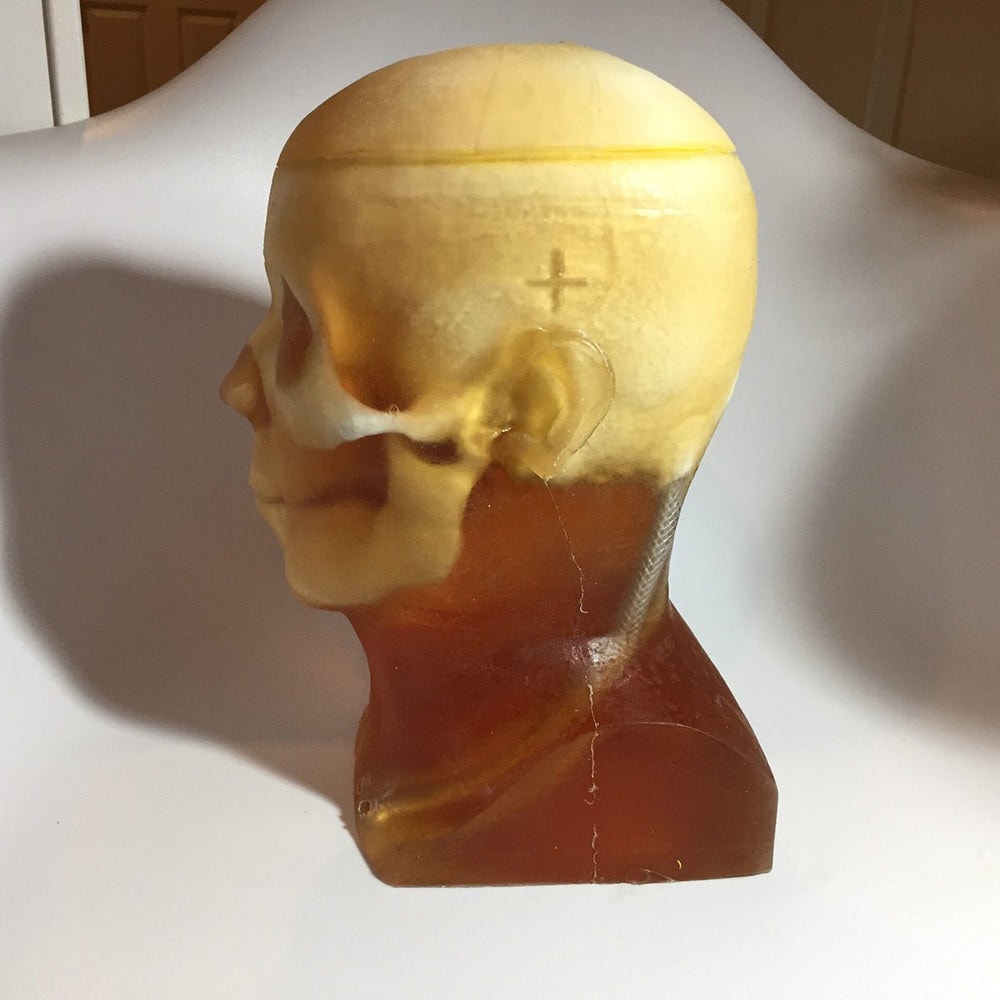

The design of this phantom is based on an average human male head, and it is made out of several realistic tissues mimicking materials that are suitable for Ultrasound, MRI, and X-Ray/CT applications. The skull bone has a realistic three-layered structure with an inner diploe layer.
ANATOMY FEATURES
- Skull Phantom

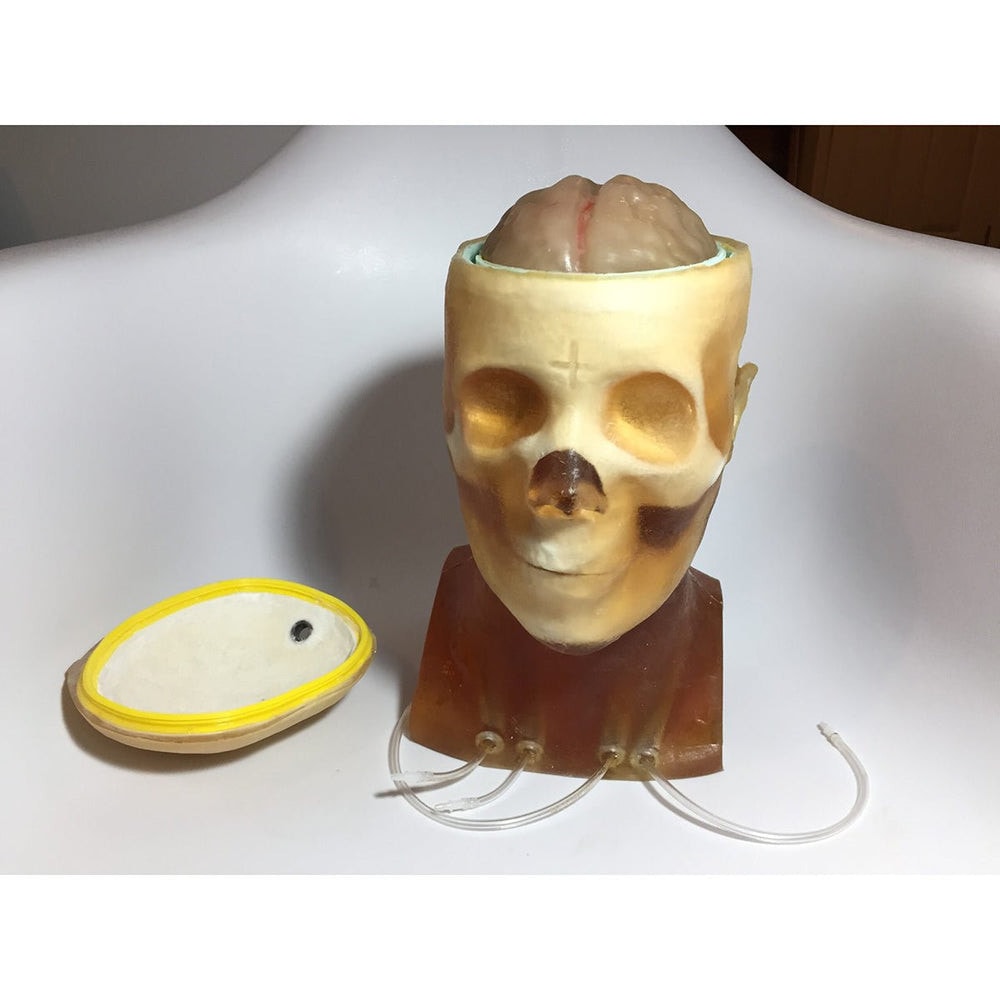

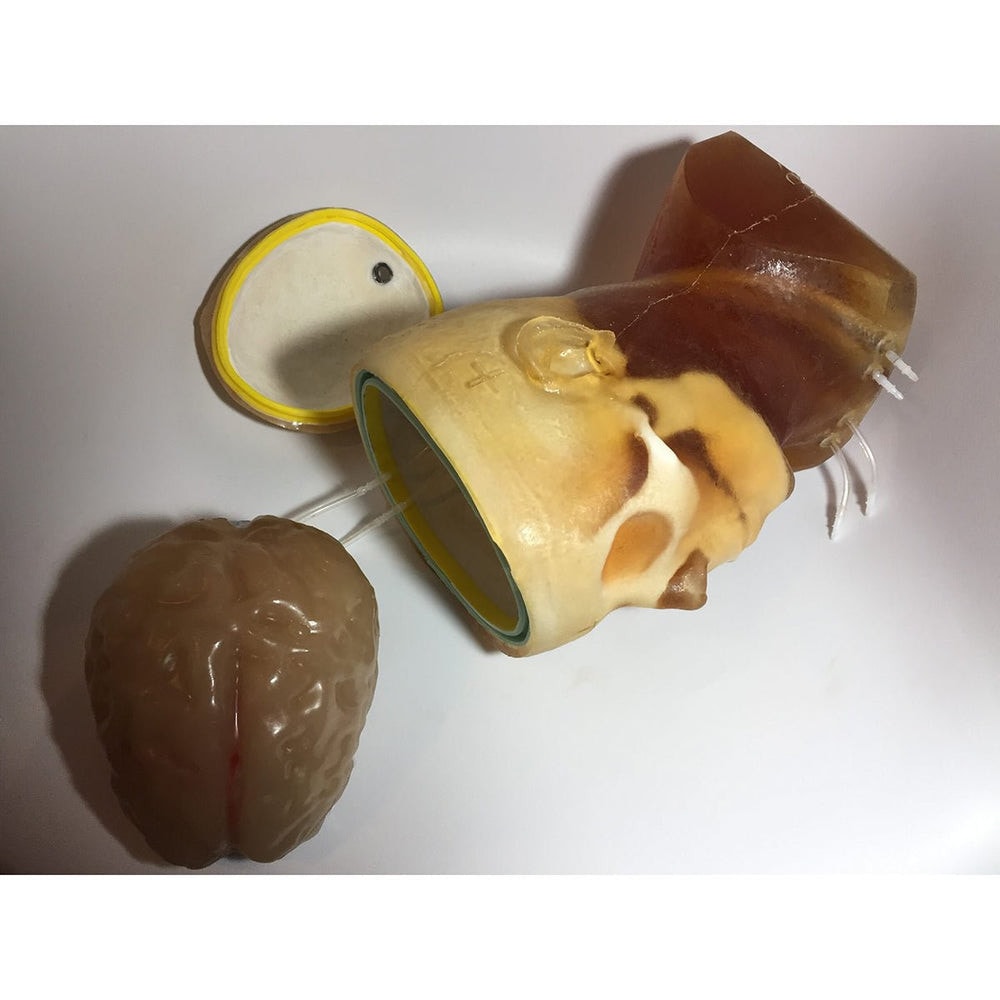

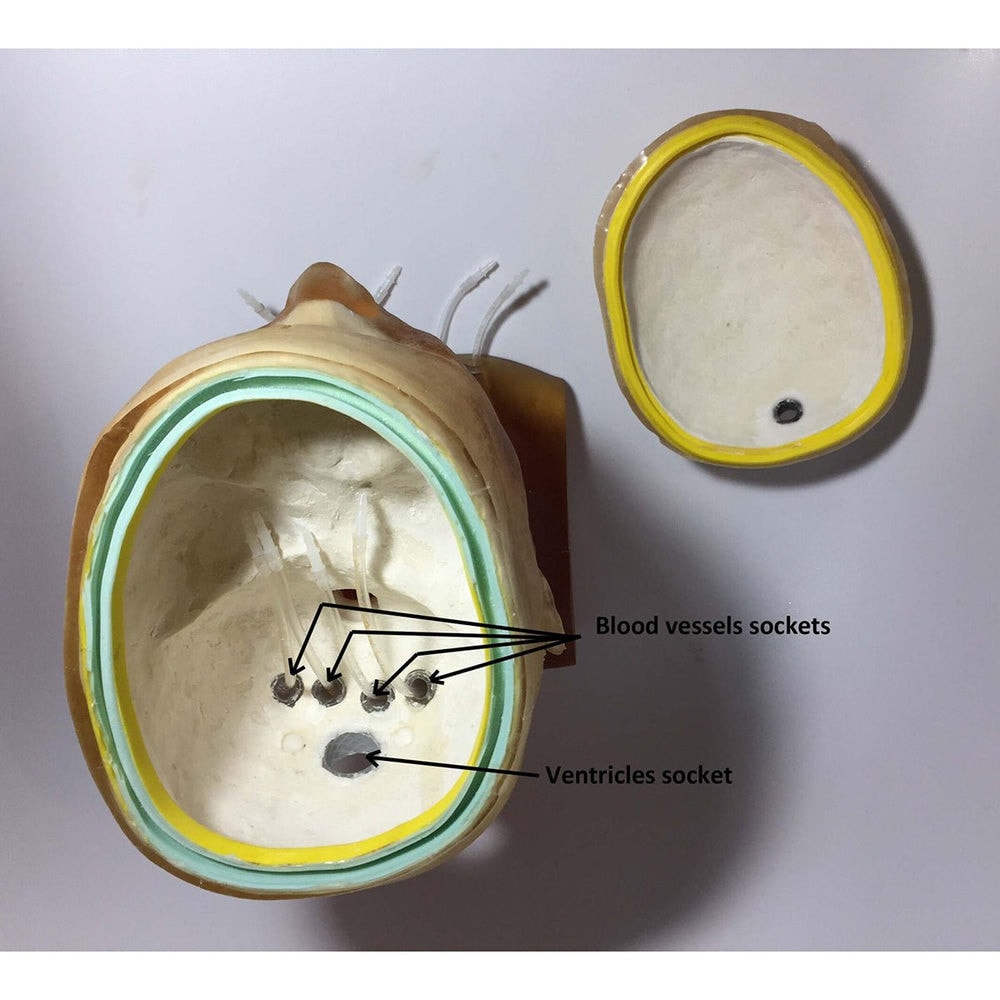

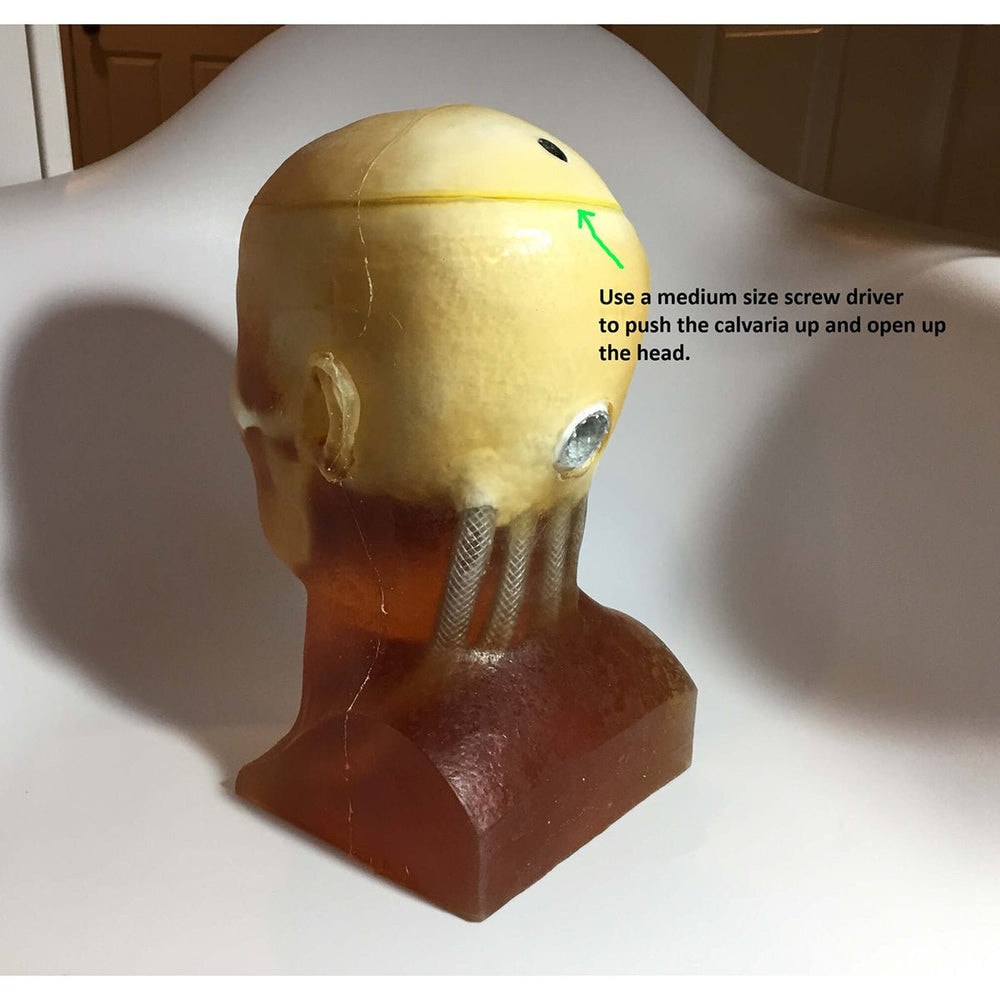

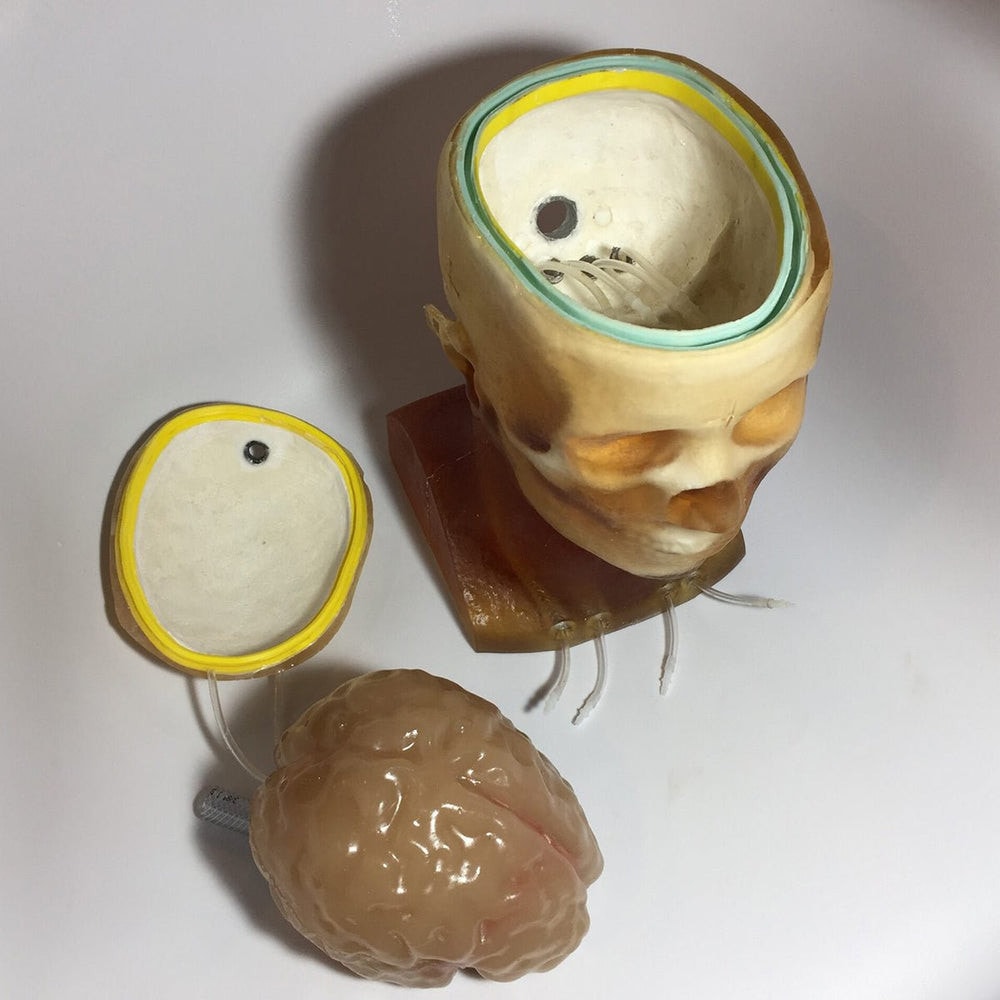

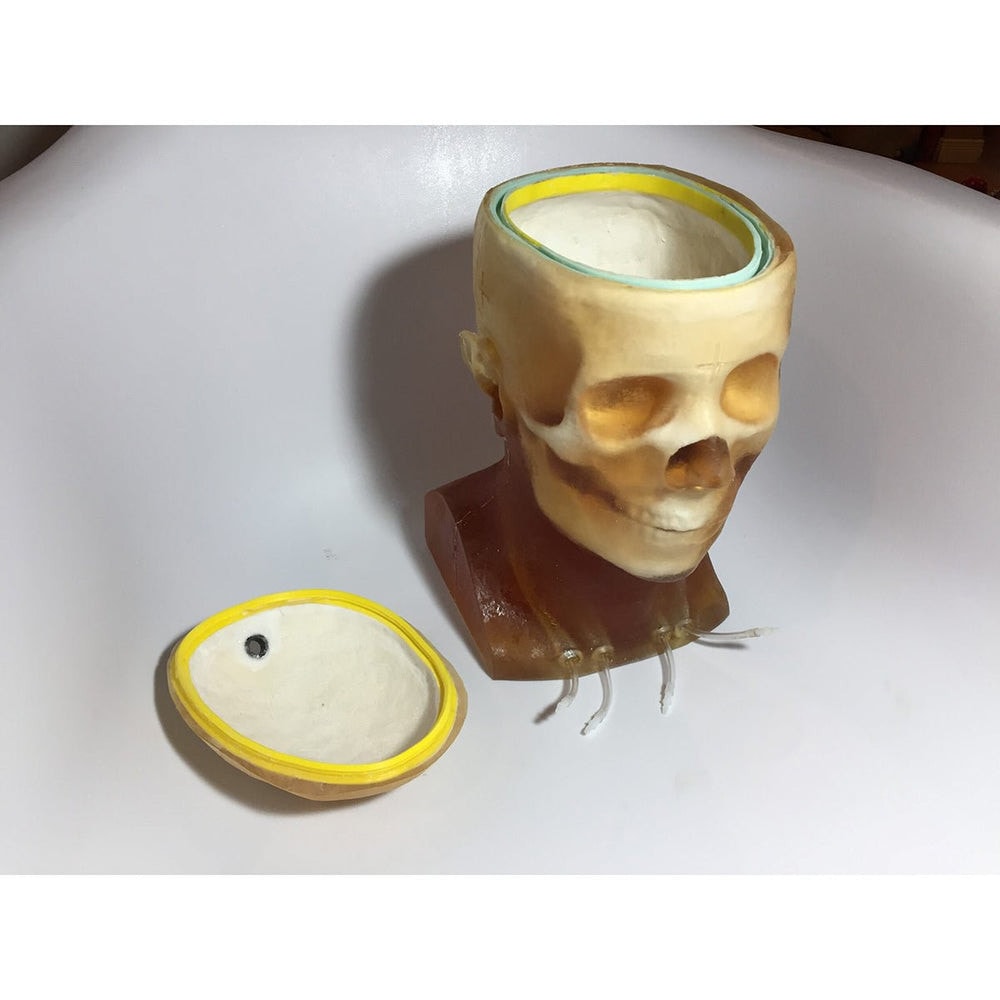

- Openable Skull Feature

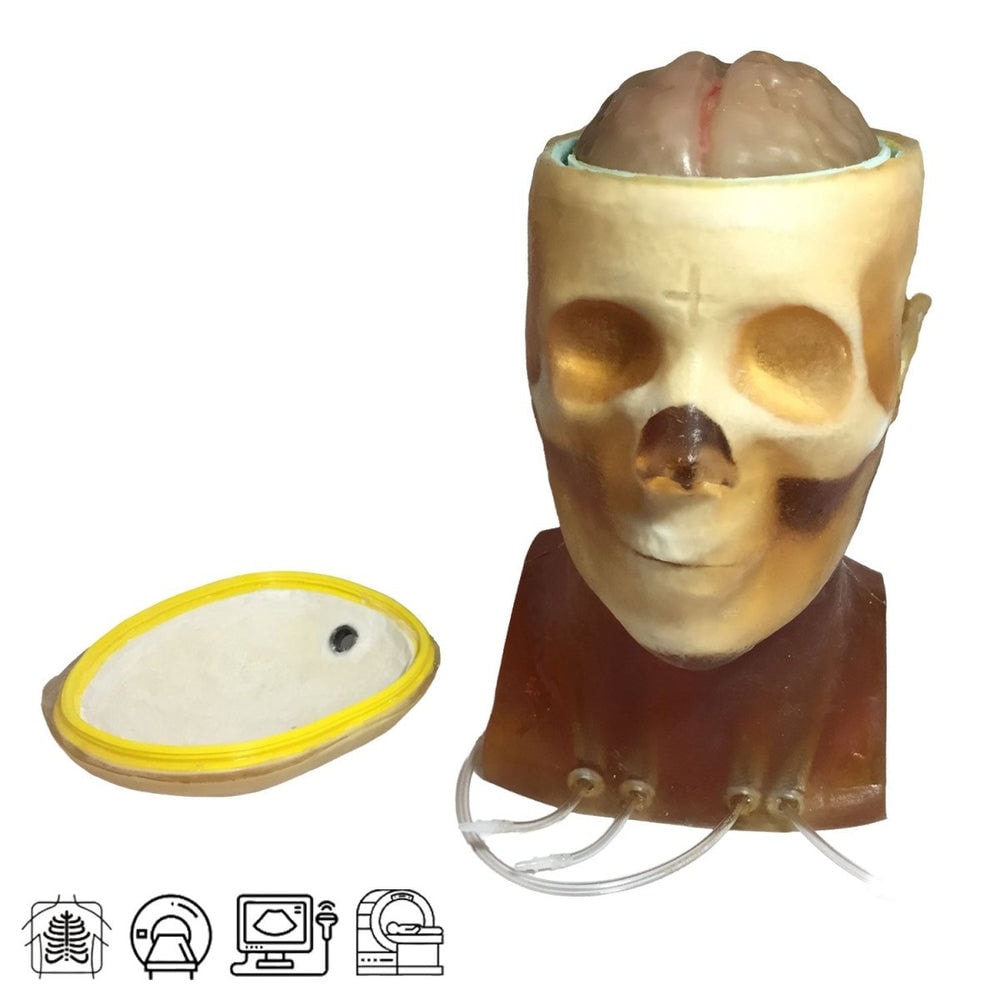

- Brain Phantom (Optional)
COMPATIBLE DIAGONSTIC IMAGING
- X-Ray CT
- Ultrasound
- MRI
SIZE & WEIGHT
- Phantom Dimension: 12 x 9 x 7 inches
- Phantom Weight: approx. 17 lbs.
- Shipping Dimension: 23 x 14 x 10 inches,
- Shipping Weight: approx. 22 lbs.
OPENABLE ADULT MALE HEAD PHANTOM PROPERTIES
| Type of tissue phantom |
Sound velocity [m/s] |
Density [g/cm3] | Attenuation measured at 2.25 MHz [dB/cm] |
Hardness [Shore OO] |
T2 [ms] |
| Cortical bone material used to fabricate the skull bone phantom | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A |
| Trabecular bone material used to fabricate the trabecular layer within the bone phantom | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A |
| Brain grey matter (optional) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 |
| Brain white matter (optional) | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 |
| Skin tissue | 1400 ± 10 | 1.02 | 1.7 ± 0.2 | 60 | 50 |
THERMAL PROPERTIES OF OUR BONE MIMICKING MATERIAL
| Thermal Conductivity: | Volumetric Specific Heat Capacity: | Thermal Diffusivity: | Thermal Resistivity: | Specific Heat: | Speed of Sound: |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
Videos
-
Design Video: Adult Head (Openable) for X-Ray CT, US, MRI
The openable head phantom is a multi-modal phantom for Ultraso...
-
Brain Installation - Adult Head (Openable) for X-Ray CT, US, MRI
Video of the Brain Installation into our Adult Head (Openable)...
-
Closing the Adult Head (Openable) for X-Ray CT, US, MRI
A video showcasing our Adult Head (Openable) Phantom..
